Rock Exotica Machined Pulley - Single P22-B
Rock Exotica Machined Pulley - Single P22-B
Couldn't load pickup availability
P22-B

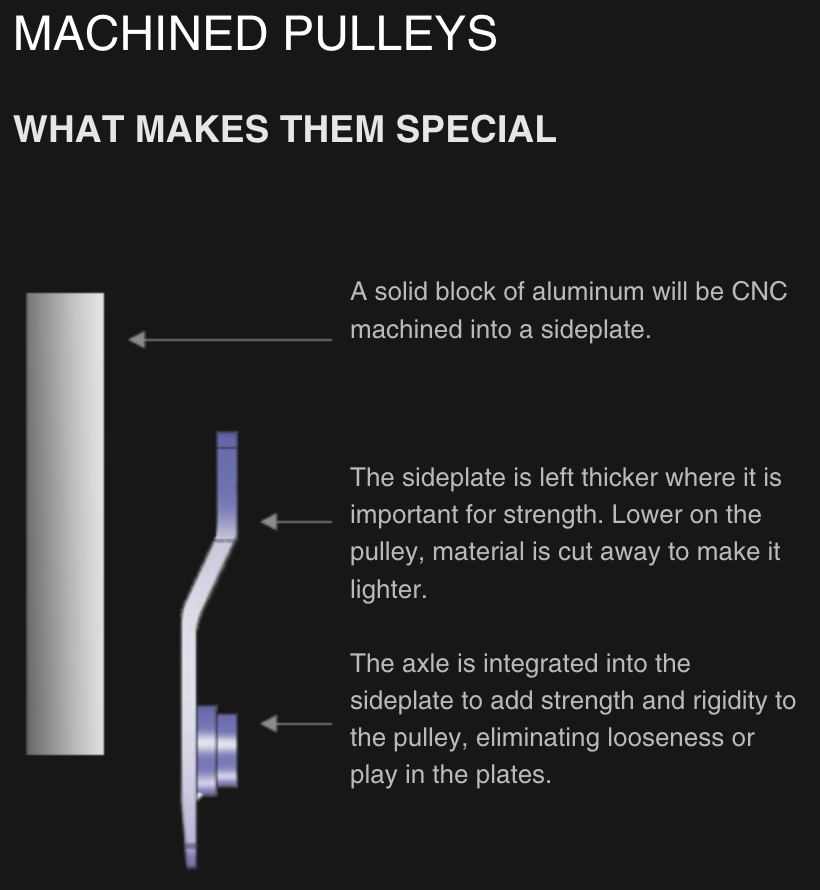

The Machined Mini and Rescue Pulleys are designed and manufactured like no other pulley in the world. Starting as a block of solid T6 aluminum, the sideplates for the pulley are milled in such a way to leave material where it's needed most for strength. And because the sideplate starts out of as a solid block, the axle for the pulley is left as an integrated part of the sideplate, further adding to its strength and overall rigidness.

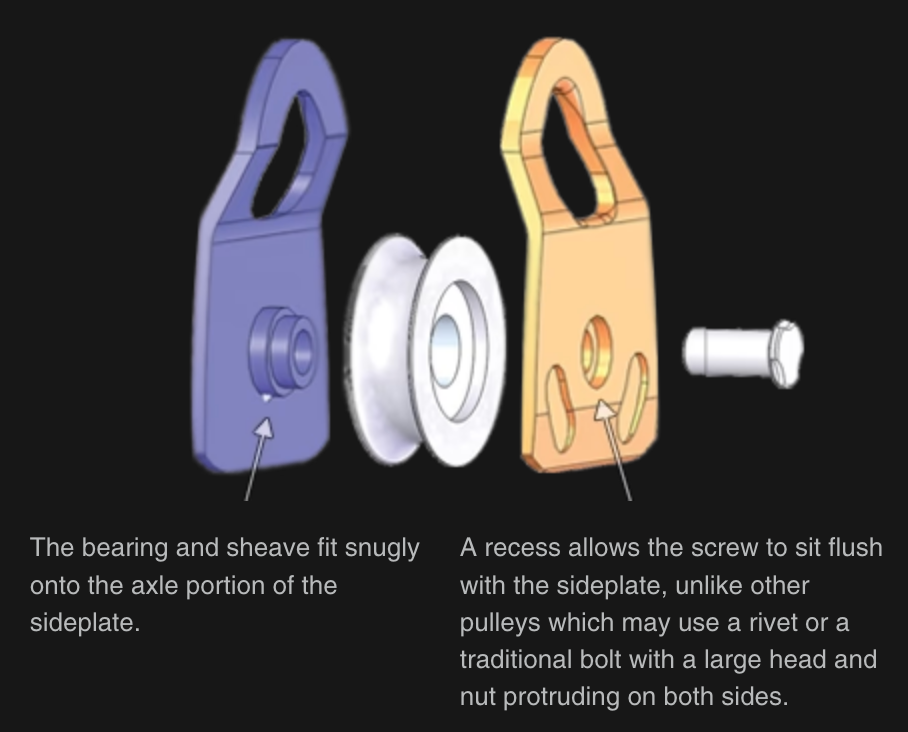

The integrated axle also allows the pulley to use a custom manufactured threaded bolt which is countersunk into the sideplate, giving the pulley a unique snag-resistant profile. These one-of-a-kind features are the basis for the Machined Pulley's impressive strength, slim profile and a quality of manufacture that is second to none.
- Recessed axle screw sits flush to pulley sideplates, creating slim, snag-free profile.
- Machined—not stamped parts, create a stronger pulley, increasing its strength-to-weight ratio.
- Axle is integrated into sideplates, adding additional strength and rigidity to the pulley.
- Machined sideplates allow for a more compact design while maintaining the same rope capacity of other pulleys.
- Utilizes high-efficiency bearings

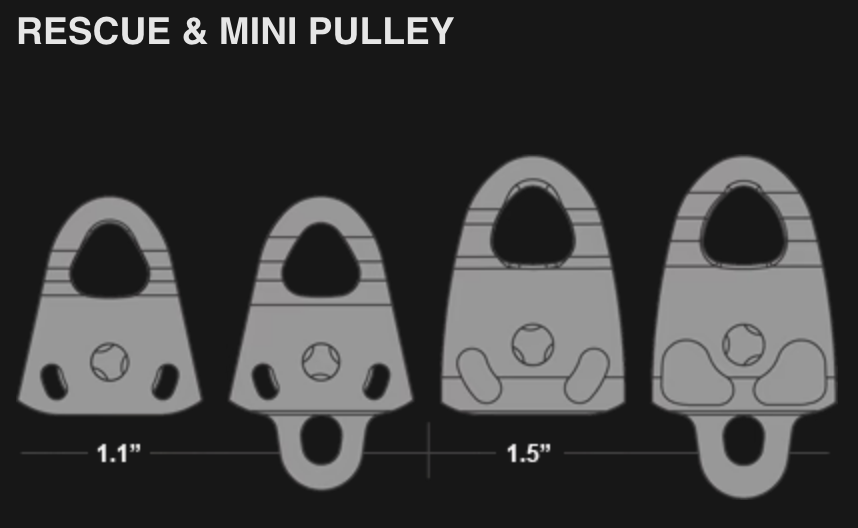

Available in Single, Double & 1.1", 1.5" models

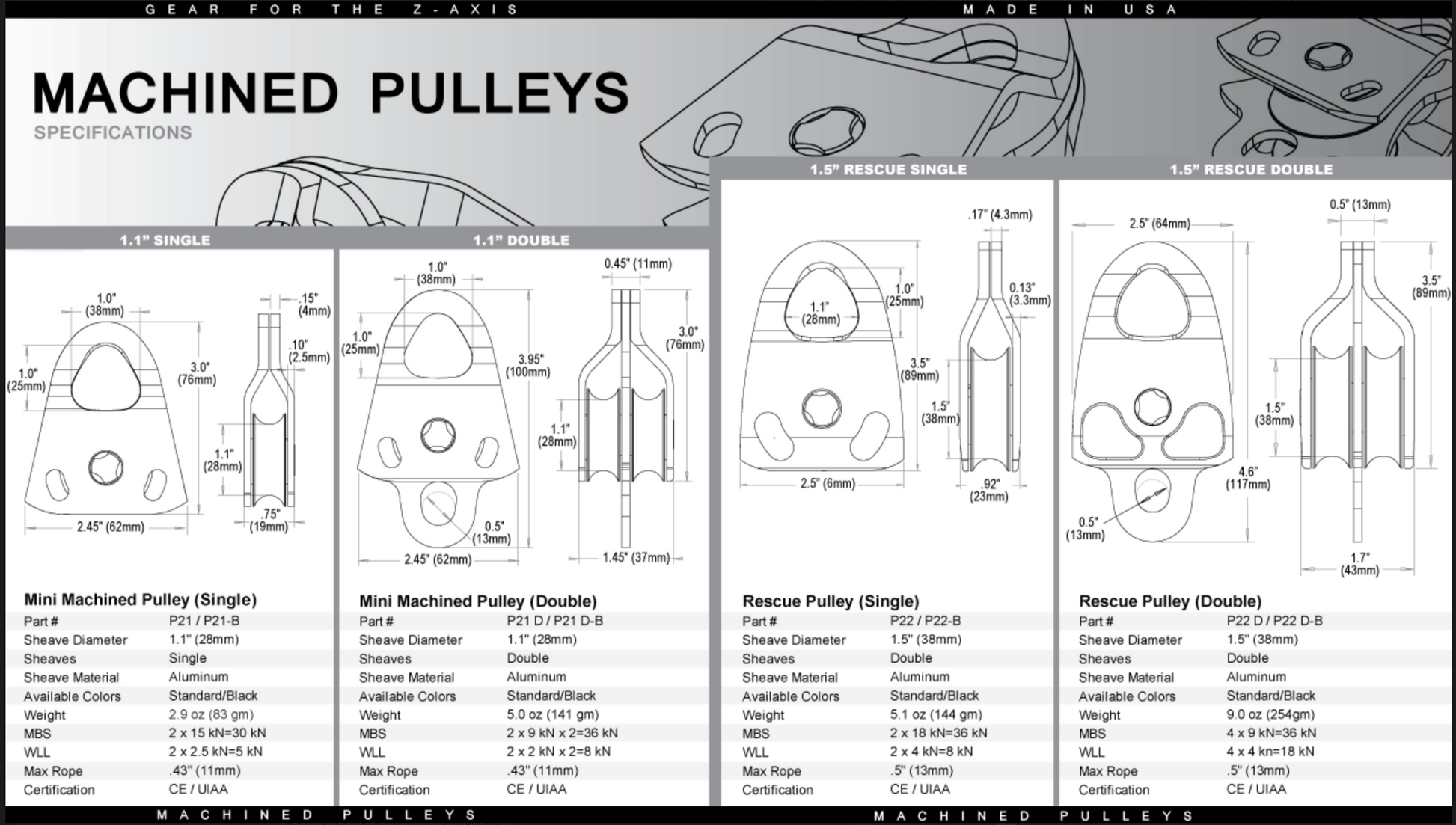

Weight / MBS / WLL / Max Rope / Cert
1.1" Mini Single
2.9 oz (83 gm) | 30kN | 5kN | .43" (11mm) | CE
1.1" Mini Double
5.0 oz (141gm) | 36kN | 8kN | .43" (11mm) | CE
1.5" Rescue Single
5.1 oz (144gm) | 36kN | 8kN | .5" (13mm) | CE
1.5" Rescue Double
9.0 oz (254gm) | 36kN | 8kN | .5" (13mm) | CE
Compare All Sizes
Machined Pulley Tech Notice (.pdf)
Mini Machined Pulley Declaration of Conformity (.pdf)
Rescue Pulley Declaration of Conformity (.pdf)
